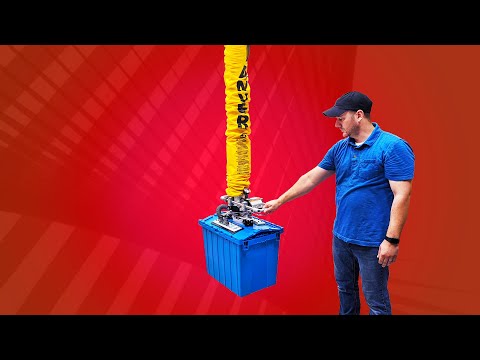

真空管搬運（塑膠箱）

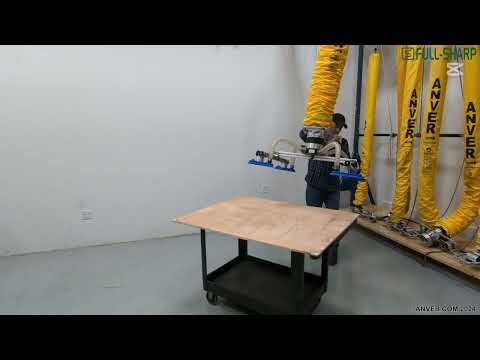

板材吸取示範

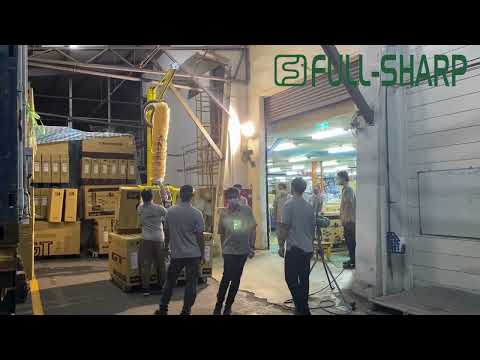

原料袋搬運示範
選擇適合的真空搬運設備以達到最佳效率
ANVER VT 系列真空搬運設備專為高效率搬運而設計，適用於連續操作週期，可在每分鐘內多次搬運物品。
ANVER VT 真空搬運系統運作原理簡單：一台真空泵從遠端產生真空吸力，透過提升管和控制手柄傳遞。當吸頭與吸盤接觸到待搬運物體時，會利用真空吸力牢牢吸附在表面。當吸力增加時，提升管會收縮並將物體抬起；當吸力減弱（可透過手柄控制），提升管會伸長並安全地將物體放下。這是一種簡單、可靠的解決方案，一個人即可輕鬆處理幾乎所有類型的物品。
ANVER 提供多種尺寸與款式的系統，滿足不同需求。選擇正確的設備有助於提高生產力、確保工作安全並節省成本。您可聯繫 FULLSHARP 以獲得免費諮詢與選型服務。
影響系統搬運能力的因素包括：
- 搬運物體的重量與材質（漏氣、微漏氣、不漏氣）
- 可吸附的表面面積
- 搬運物體的形狀（鬆散、重型、笨重等）
- 真空泵系統（高/低壓）
- 達到的真空度
- 吸頭的尺寸與形狀
- 真空安全係數（提升管直徑與吸附面積的比例）
| VT90 | ||||||
| Vacuum Station Model No. | Non-Porous Load lb (kg) |
Semi-Porous Load lb (kg) |
Porous Load lb (kg) |
Lift Tube Diameter in. (mm) |
Lift Tube Area sq in. (sq cm) |
Min Pad Area 2:1 sq in. (sq cm) |
|---|---|---|---|---|---|---|
| VB4HF-S | 35 (16) | 30 (14) | 25 (11) | 3.54 (90) | 10 (64) | 20 (127) |
| VB7HV-S | 55 (25) | 40 (18) | 25 (11) | |||
| MSP400-S | 52 (24) | 39 (16) | 26 (12) | |||
Micro Vacuum Tube Systems
VT90
VB4HF-S
Non-Porous Load: 35 lb (16 kg)
Semi-Porous Load: 30 lb (14 kg)
Porous Load: 25 lb (11 kg)
VB7HV-S
Non-Porous Load: 55 lb (25 kg)
Semi-Porous Load: 40 lb (18 kg)
Porous Load: 25 lb (11 kg)
MSP400-S
Non-Porous Load: 52 lb (24 kg)
Semi-Porous Load: 39 lb (16 kg)
Porous Load: 26 lb (12 kg)
| VT120 | ||||||
| Model | Non-Porous lb (kg) |
Semi-Porous lb (kg) |
Porous lb (kg) |
Diameter in. (mm) |
Area sq in. (cm) |
Min Pad sq in. (cm) |
|---|---|---|---|---|---|---|
| VB4HF-S | 65 (29) | 55 (25) | 45 (20) | 4.7 (120) | 18 (113) | 35 (226) |
| VB41HF-FR-S | 70 (32) | 50 (23) | 35 (16) | |||
| VB7HV-S | 105 (48) | 80 (36) | 50 (23) | |||
| VB9HV-S | 115 (52) | 85 (39) | 60 (27) | |||
| MSP400-S | 95 (43) | 71 (32) | 47 (21) | |||
VT120
VB4HF-S
Non-Porous:65 lb (29 kg)
Semi-Porous:55 lb (25 kg)
Porous:45 lb (20 kg)
VB41HF-FR-S
Non-Porous:70 lb (32 kg)
Semi-Porous:50 lb (23 kg)
Porous:35 lb (16 kg)
VB7HV-S
Non-Porous:105 lb (48 kg)
Semi-Porous:80 lb (36 kg)
Porous:50 lb (23 kg)
VB9HV-S
Non-Porous:115 lb (52 kg)
Semi-Porous:85 lb (39 kg)
Porous:60 lb (27 kg)
MSP400-S
Non-Porous:95 lb (43 kg)
Semi-Porous:71 lb (32 kg)
Porous:47 lb (21 kg)
| VT100 | ||||||
| Model | Non-Porous lb (kg) |
Semi-Porous lb (kg) |
Porous lb (kg) |
Diameter in. (mm) |
Area sq in. (cm) |
Min Pad sq in. (cm) |
|---|---|---|---|---|---|---|
| VB4HF-S | 45 (20) | 40 (18) | 30 (14) | 3.9 (100) | 12 (79) | 24 (157) |
| VB7HV-S | 70 (32) | 55 (25) | 35 (16) | |||
| VB9HV-S | 80 (36) | 60 (27) | 40 (18) | |||
| MSP200-S | 55 (25) | 40 (18) | 28 (13) | |||
| MSP400-S | 62 (29) | 47 (21) | 31 (14) | |||
Mini Vacuum Tube Systems
VT100
VB4HF-S
Non-Porous:45 lb (20 kg)
Semi-Porous:40 lb (18 kg)
Porous:30 lb (14 kg)
VB7HV-S
Non-Porous:70 lb (32 kg)
Semi-Porous:55 lb (25 kg)
Porous:35 lb (16 kg)
VB9HV-S
Non-Porous:80 lb (36 kg)
Semi-Porous:60 lb (27 kg)
Porous:40 lb (18 kg)
MSP200-S
Non-Porous:55 lb (25 kg)
Semi-Porous:40 lb (18 kg)
Porous:28 lb (13 kg)
MSP400-S
Non-Porous:62 lb (29 kg)
Semi-Porous:47 lb (21 kg)
Porous:31 lb (14 kg)
| VT140 | ||||||
| Model | Non-Porous lb (kg) |
Semi-Porous lb (kg) |
Porous lb (kg) |
Diameter in. (mm) |
Area sq in. (cm) |
Min Pad sq in. (cm) |
|---|---|---|---|---|---|---|
| VB4HF-S | 90 (41) | 75 (34) | 65 (29) | 5.5 (140) | 24 (154) | 48 (308) |
| VB41HF-FR-S | 100 (45) | 75 (34) | 50 (23) | |||
| VB7HV-S | 135 (61) | 100 (45) | 65 (29) | |||
| VB9HV-S | 155 (70) | 115 (52) | 75 (34) | |||
| MSP400-S | 120 (54) | 90 (41) | 60 (27) | |||
VT140
VB4HF-S
Non-Porous:90 lb (41 kg)
Semi-Porous:75 lb (34 kg)
Porous:65 lb (29 kg)
VB41HF-FR-S
Non-Porous:100 lb (45 kg)
Semi-Porous:75 lb (34 kg)
Porous:50 lb (23 kg)
VB7HV-S
Non-Porous:135 lb (61 kg)
Semi-Porous:100 lb (45 kg)
Porous:65 lb (29 kg)
VB9HV-S
Non-Porous:155 lb (70 kg)
Semi-Porous:115 lb (52 kg)
Porous:75 lb (34 kg)
MSP400-S
Non-Porous:120 lb (54 kg)
Semi-Porous:90 lb (41 kg)
Porous:60 lb (27 kg)
| VT160 | ||||||
| Model | Non-Porous lb (kg) |
Semi-Porous lb (kg) |
Porous lb (kg) |
Diameter in. (mm) |
Area sq in. (cm) |
Min Pad sq in. (cm) |
|---|---|---|---|---|---|---|
| VB4HF-S | 115 (52) | 100 (45) | 80 (36) | 6.3 (160) | 31 (201) | 62 (402) |
| VB41HF-FR-S | 130 (59) | 95 (43) | 65 (29) | |||
| VB7HV-S | 150 (68) | 110 (50) | 75 (34) | |||
| VB8HF-S | 125 (57) | 115 (52) | 100 (45) | |||
| VB9HV-S | 185 (84) | 135 (61) | 95 (43) | |||
| MSP400-S | 135 (61) | 101 (46) | 67 (30) | |||
Standard Vacuum Tube Systems
VT160
VB4HF-S
Non-Porous:115 lb (52 kg)
Semi-Porous:100 lb (45 kg)
Porous:80 lb (36 kg)
VB41HF-FR-S
Non-Porous:130 lb (59 kg)
Semi-Porous:95 lb (43 kg)
Porous:65 lb (29 kg)
VB7HV-S
Non-Porous:150 lb (68 kg)
Semi-Porous:110 lb (50 kg)
Porous:75 lb (34 kg)
VB8HF-S
Non-Porous:125 lb (57 kg)
Semi-Porous:115 lb (52 kg)
Porous:100 lb (45 kg)
VB9HV-S
Non-Porous:185 lb (84 kg)
Semi-Porous:135 lb (61 kg)
Porous:95 lb (43 kg)
MSP400-S
Non-Porous:135 lb (61 kg)
Semi-Porous:101 lb (46 kg)
Porous:67 lb (30 kg)
| VT180 | ||||||
| Model | Non-Porous lb (kg) |
Semi-Porous lb (kg) |
Porous lb (kg) |
Diameter in. (mm) |
Area sq in. (cm) |
Min Pad sq in. (cm) |
|---|---|---|---|---|---|---|
| VB4HF-S | 150 (68) | 125 (57) | 105 (48) | 7.1 (180) | 39 (254) | 79 (509) |
| VB41HF-FR-S | 170 (77) | 130 (59) | 85 (39) | |||
| VB7HV-S | 175 (79) | 130 (59) | 85 (39) | |||
| VB8HF-S | 155 (70) | 140 (64) | 125 (57) | |||
| VB9HV-S | 235 (107) | 180 (82) | 120 (54) | |||
| MSP400-S | 157 (71) | 118 (53) | 78 (35) | |||
VT180
VB4HF-S
Non-Porous:150 lb (68 kg)
Semi-Porous:125 lb (57 kg)
Porous:105 lb (48 kg)
VB41HF-FR-S
Non-Porous:170 lb (77 kg)
Semi-Porous:130 lb (59 kg)
Porous:85 lb (39 kg)
VB7HV-S
Non-Porous:175 lb (79 kg)
Semi-Porous:130 lb (59 kg)
Porous:85 lb (39 kg)
VB8HF-S
Non-Porous:155 lb (70 kg)
Semi-Porous:140 lb (64 kg)
Porous:125 lb (57 kg)
VB9HV-S
Non-Porous:235 lb (107 kg)
Semi-Porous:180 lb (82 kg)
Porous:120 lb (54 kg)
MSP400-S
Non-Porous:157 lb (71 kg)
Semi-Porous:118 lb (53 kg)
Porous:78 lb (35 kg)
| VT200 | ||||||
| Model | Non-Porous lb (kg) |
Semi-Porous lb (kg) |
Porous lb (kg) |
Diameter in. (mm) |
Area sq in. (cm) |
Min Pad sq in. (cm) |
|---|---|---|---|---|---|---|
| VB4HF-S | 180 (82) | 155 (70) | 130 (59) | 7.9 (200) | 49 (314) | 97 (628) |
| VB41HF-FR-S | 215 (98) | 160 (73) | 105 (48) | |||
| VB7HV-S | 215 (98) | 160 (73) | 110 (50) | |||
| VB8HF-S | 200 (91) | 180 (82) | 160 (73) | |||
| VB9HV-S | 295 (134) | 220 (100) | 150 (68) | |||
| MSP400-S | 195 (88) | 146 (66) | 97 (43) | |||
VT200
VB4HF-S
Non-Porous:180 lb (82 kg)
Semi-Porous:155 lb (70 kg)
Porous:130 lb (59 kg)
VB41HF-FR-S
Non-Porous:215 lb (98 kg)
Semi-Porous:160 lb (73 kg)
Porous:105 lb (48 kg)
VB7HV-S
Non-Porous:215 lb (98 kg)
Semi-Porous:160 lb (73 kg)
Porous:110 lb (50 kg)
VB8HF-S
Non-Porous:200 lb (91 kg)
Semi-Porous:180 lb (82 kg)
Porous:160 lb (73 kg)
VB9HV-S
Non-Porous:295 lb (134 kg)
Semi-Porous:220 lb (100 kg)
Porous:150 lb (68 kg)
MSP400-S
Non-Porous:195 lb (88 kg)
Semi-Porous:146 lb (66 kg)
Porous:97 lb (43 kg)
| VT230 | ||||||
| Model | Non-Porous lb (kg) |
Semi-Porous lb (kg) |
Porous lb (kg) |
Diameter in. (mm) |
Area sq in. (cm) |
Min Pad sq in. (cm) |
|---|---|---|---|---|---|---|
| VB4HF-S | 240 (109) | 210 (95) | 175 (79) | 9.1 (230) | 64 (413) | 128 (826) |
| VB41HF-FR-S | 290 (132) | 215 (98) | 145 (66) | |||
| VB7HV-S | 285 (129) | 215 (98) | 150 (68) | |||
| VB9HV-S | 355 (161) | 265 (120) | 180 (82) | |||
| MSP400-S | 260 (118) | 195 (88) | 130 (59) | |||
VT230
VB4HF-S
Non-Porous:240 lb (109 kg)
Semi-Porous:210 lb (95 kg)
Porous:175 lb (79 kg)
VB41HF-FR-S
Non-Porous:290 lb (132 kg)
Semi-Porous:215 lb (98 kg)
Porous:145 lb (66 kg)
VB7HV-S
Non-Porous:285 lb (129 kg)
Semi-Porous:215 lb (98 kg)
Porous:150 lb (68 kg)
VB9HV-S
Non-Porous:355 lb (161 kg)
Semi-Porous:265 lb (120 kg)
Porous:180 lb (82 kg)
MSP400-S
Non-Porous:260 lb (118 kg)
Semi-Porous:195 lb (88 kg)
Porous:130 lb (59 kg)
| VT250 | ||||||
| Model | Non-Porous lb (kg) |
Semi-Porous lb (kg) |
Porous lb (kg) |
Diameter in. (mm) |
Area sq in. (cm) |
Min Pad sq in. (cm) |
|---|---|---|---|---|---|---|
| VB41HF-FR-S | 345 (157) | 260 (118) | 170 (77) | 9.8 (250) | 76 (491) | 152 (982) |
| VB8HF-S | 330 (150) | 265 (120) | 215 (98) | |||
| VB9HV-S | 390 (177) | 295 (134) | 195 (88) | |||
VT250
VB41HF-FR-S
Non-Porous:345 lb (157 kg)
Semi-Porous:260 lb (118 kg)
Porous:170 lb (77 kg)
VB8HF-S
Non-Porous:330 lb (150 kg)
Semi-Porous:265 lb (120 kg)
Porous:215 lb (98 kg)
VB9HV-S
Non-Porous:390 lb (177 kg)
Semi-Porous:295 lb (134 kg)
Porous:195 lb (88 kg)
ANVER 強烈建議應使用真空排氣閥，以確保有足夠的自由氣流，避免內部熱量積聚。過度的熱膨脹可能導致葉片或泵室碰撞與摩擦，造成過早磨損、損壞泵內部，甚至泵卡死。
- 顯示的額定負載範圍僅供一般參考。系統的實際搬運能力取決於多種因素（搬運物表面的滲氣程度、物料類型、真空泵類型、吸頭類型等）。
在某些特殊情況下，真空提升管系統可能無法滿足所需的負載要求。在此情況下，ANVER 也可提供與吊車或氣動平衡吊車結合使用的提升系統。
