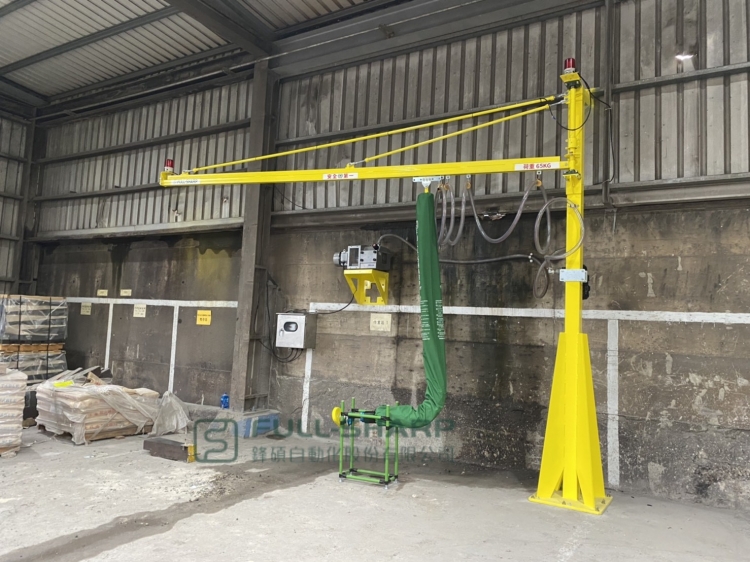

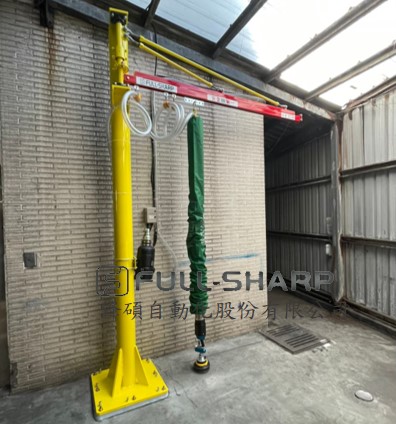

Product name:FULL-SHARP Self-made Vacuum Tube Lifting Systems
Press the thumbnail on the right to zoom in
Press the thumbnail on the right to zoom in
Product specifications
More
1. The power supply of this equipment is three-phase, 220V voltage, with power interruption protection, high safety, fast moving, easy operation, and no vibration issue.
2. Different specifications of vacuum suction cups, vacuum hanging pipes and vacuum pumps are available to match different workpieces.
3. Model: VFT-120-1, one-handed operation
4. Large flow filter with filter core *1 group
Product Size
|
Vacuum main hanger model |
Load(KG) | Vacuum main hanger length | ||||
|
No air leakage on the surface |
Less air leakage on the surface |
More air leakage on the surface |
shortest (mm) | longest (mm) | lift head (mm) | |
| VTF-100 | 40 | 32 | 25 | 890 | 2500 | 1800 |
| VTF-120 | 55 | 42 | 30 | 890 | 2500 | 1800 |
| VTF-140 | 60 | 50 | 40 | 890 | 2500 | 1800 |
Product description
More
1. Quick moving, easy operation, for users at all ages and genders to handle moving.
2. No vibration issue during moving and absolutely no damage to the workpiece.
3. When the power is interrupted, the safety control valve will be closed automatically so that the workpiece will not fall instantly, and the workpiece will be descended slowly to ensure the safety of the workpiece and personnel.
4. Various types of suction cup fixtures are available to fit different workpieces.
5. There is also a soundproof box to reduce the noise generated by the vacuum motor.
6. The installation method is designed and manufactured according to the site requirements.
7. Taiwan-made vacuum handler
Remarks
Remark:
1. The filter cartridge of vacuum pump needs to be cleaned periodically.
2. The filter cartridge of vacuum filter needs to be cleaned regularly.
3. Depending on the amount of dust in the environment, the vacuum filter should be cleaned once every half month or once a month.
Cleaning method: Insert the air nozzle into the filter cartridge and spray the air from inside to outside to remove the dust from the filter cartridge.
Cleaning method: Insert the air nozzle into the filter cartridge and spray the air from inside to outside to remove the dust from the filter cartridge.
