1. Adopt two articulated robots for maximum flexibility.
2. Different installation types can be selected according to customer needs and site environment.
3. Patented product equipment.

Basic components:
1. Cylinder type crane.
2. Anti-fall device.
3. Customized gloves.
4. Control box.

Product Size

• Basic Specifications:

Load	Up and down stroke	Rotation radius	Horizontal movement distance	Rotation angle
30kg	1500mm	2450mm	1550mm	315度

•

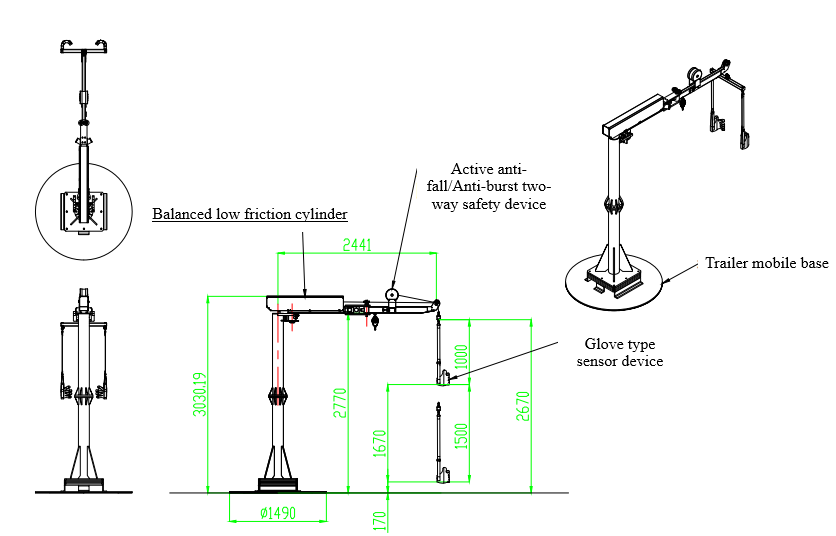

• Standard size drawing:

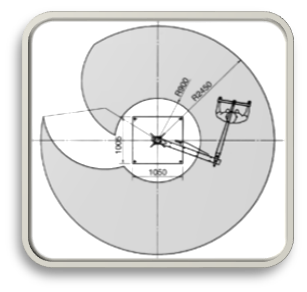

• Standard working range diagram:

Product description

Features:
1. By increasing the power control to assist the hands, without special effort, easy to operate.
2. Easily and conveniently perform relatively complex tasks, such as: rotation and tilting.
3. Suitable for moving objects with irregular shape or size.

Remarks
