Product name:German-made ABUS light track series

 Press the thumbnail on the right to zoom in

German-made ABUS light track series

 Press the thumbnail on the right to zoom in

Product operation-related audio and video

More

Product specifications

More

1. German-made ABUS light track series (suitable for clean room)
Old version: HB160/HB200/HB250
New version: Aluminum-HB150A; Steel-HB110S/HB150S/HB190S
2. One-piece integrated formed aluminum light rail: Manually moveable, light weight, smooth and stable movement and fast positioning, able to improve work efficiency.
3.Light rail made of one-piece integrated formed steel: Manually moveable, carrying load up to 500kg, small installation dimension, suitable ideal for low ceiling.
4.Various types of light rail jib arm.

Product Size

Old version specifications:

Model Load (KG) Longest dimension of longitudinal beam Longest dimension of cross beam
HB160 500 Unlimited 10M
HB200 1000 Unlimited 10M
HB250  2000 Unlimited 10M

New version specifications:

Model Load (KG) Longest dimension of longitudinal beam Longest dimension of cross beam
HB110S 500 Unlimited 10M
HB150A 800 Unlimited 9.7M
HB150S 800 Unlimited 9.7M
HB190S  1000 Unlimited 8.8M

Product description

More

1.German-made light track of special design, and material, able to carry heavy load, lightweight, noise free in use, and free of jam and iron chip drop or oil drip.

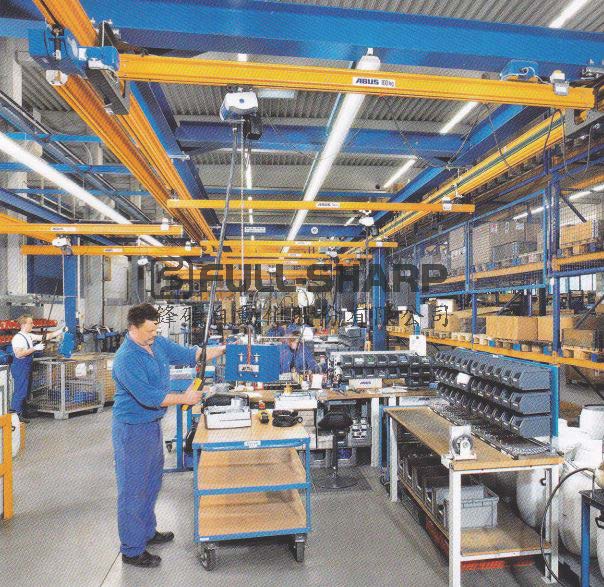

2.This rail is ideal for various types of places, such as automobile assembly plants, clean room, food and chemical plants, medical institutions in various production lines...etc.
3.The design of this product is all based on bolt-type combination, without the need of welding. When the factory or production line needs expansion in the future, it can be easily extended to add more longitudinal beams, and when the factory is relocated or the production line is changed in the future, it can be disassembled and reinstalled to the suitable position with simple hand tools.

Remarks

It can be made into the following types:

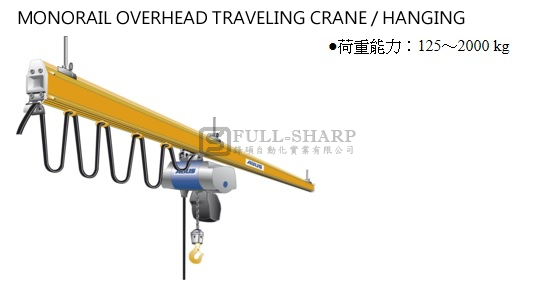

1.Monorail effort-saving hanging girder

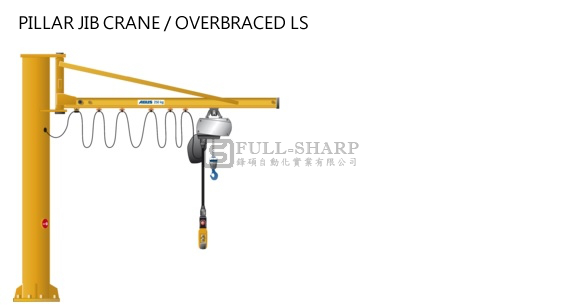

2.Pillar jib arm

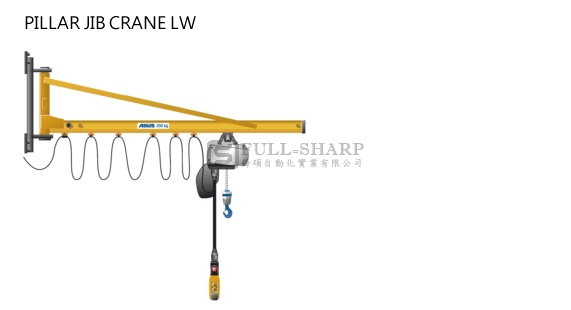

3.Wall-mount jib arm
4.Double longitudinal beam single cross beam effort-saving hanging girder
5.Double longitudinal beam double transverse beam effort-saving hanging girder
6.Curve and bending effort-saving hanging girder
7.Track-changing effort-saving hanging girder
~~~~  Installation is easy. Material is available for self-installation.~~~~
